2014 Digadoc 2600kg Gross

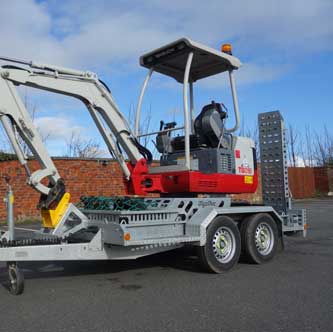

A pioneer in the market, a purpose built safety trailer designed to transport 1.5 tonne mini excavators.

  • An advanced low chassis design coupled with the automatic weight distribution system Digadoc provides creates a highly stable towing platform.
  • Twin adjustable ramps can be positioned in seconds due to the unique nylon sleeved full width rear hinge tube.

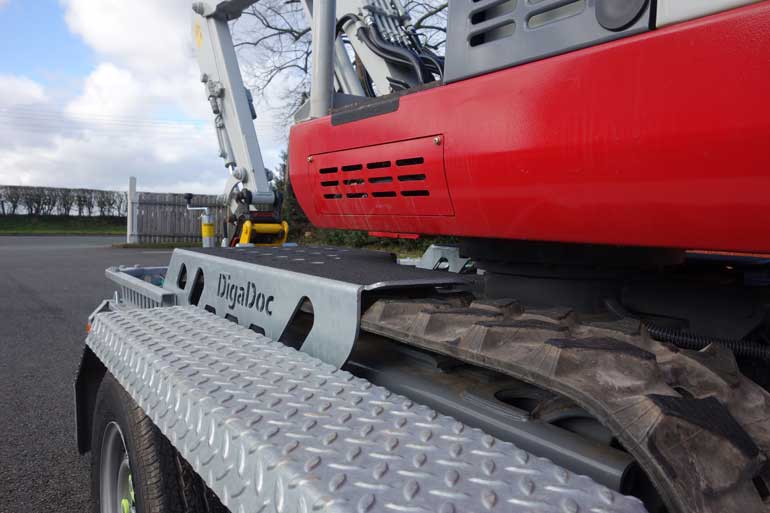

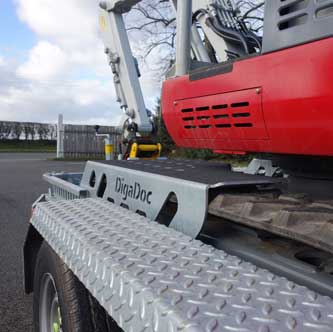

  • Steel checker plate mudguards and all round side steps enable safe access to the machinery.
  • All trailers are manufactured to full EC approved standards and feature a galvanised strong steel chassis, independent suspension and high grade quality type approved lighting.
  • A specially designated attachments section with thick security netting makes the trailer even easier to load securely.

Please find below the specification for the 2600kg trailer. If you need to know any further details please give us a call or head over to our contact page and we’d be happy to help.

Length Load Bed Length (m) 2.80
Capacity Gross KG 2,600
Load KG 1,940
Dimensions Internal bed width (m) 1.30
Overall Trailer Width 1.79
Low Loading Angle 13 Degrees
Running Gear Axles 2x 1300kg axles
Wheel / Tyre Size 13″ (165 6pr)
Sealed Wheel Bearings Come as standard

There are a variety of additional options available for the 2014 Digadoc 2600kg gross trailer.  Please see our selection below, and click on the picture to see a larger version.

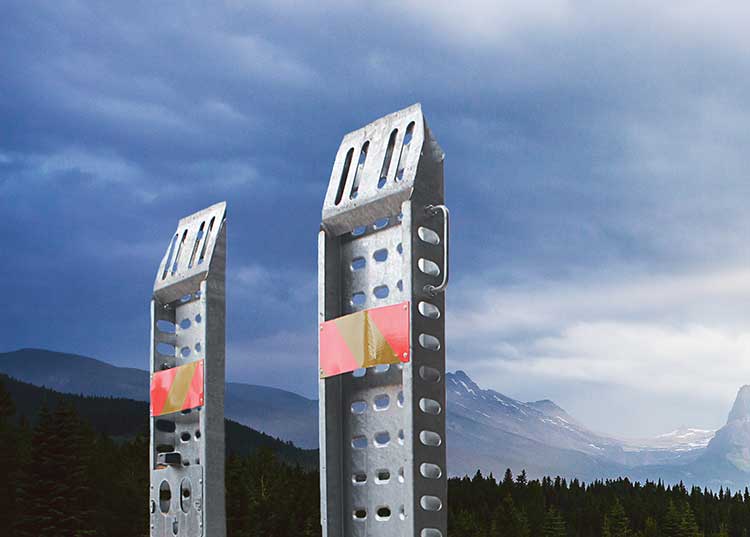

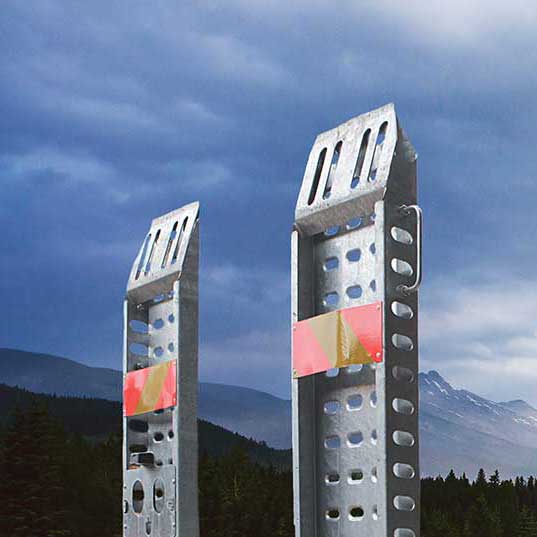

Reflective Chevrons

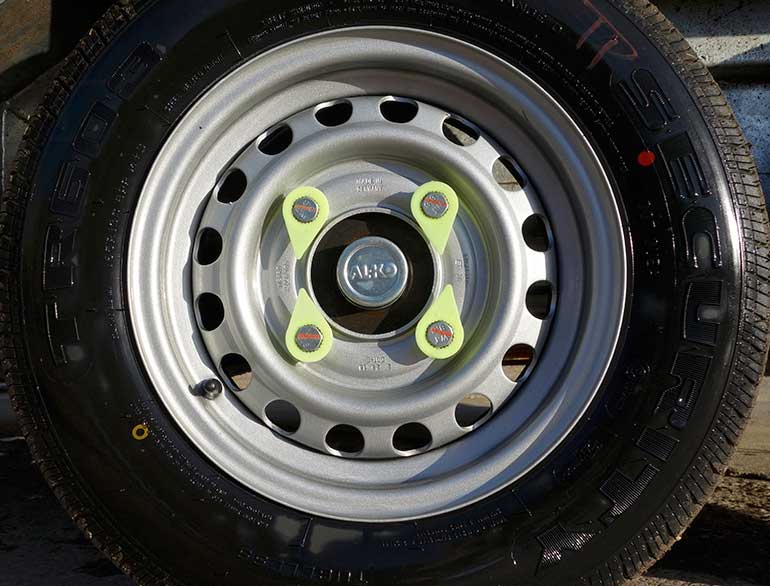

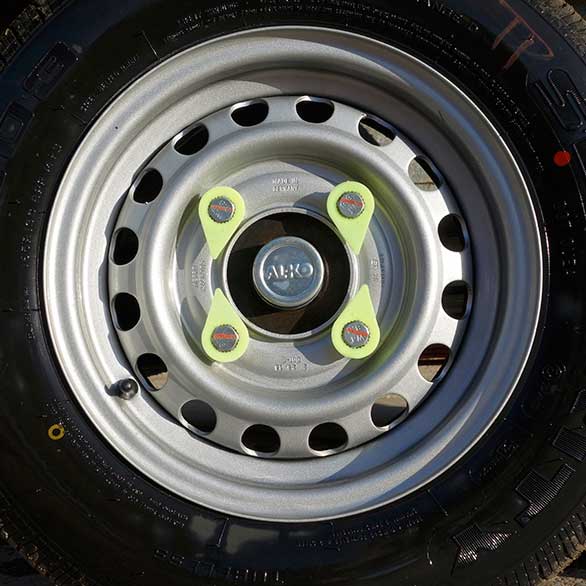

Wheel Nut Markers

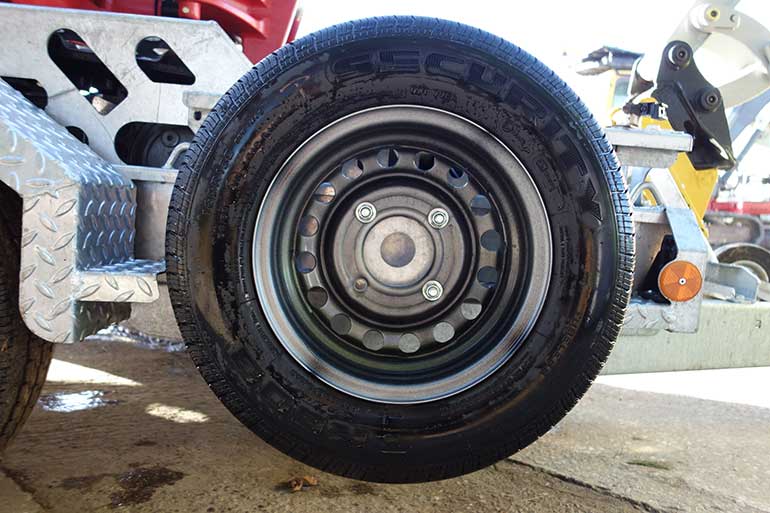

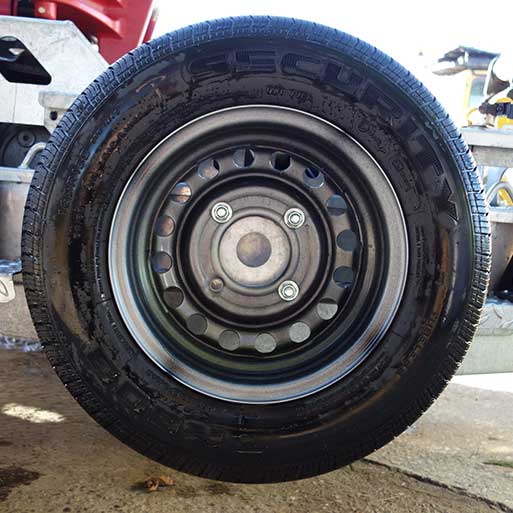

Spare Wheel

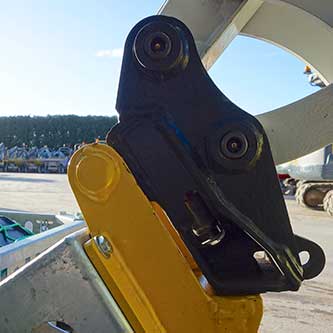

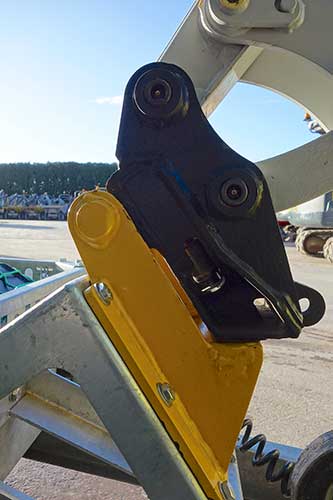

Quickhitch Mounting Bracket

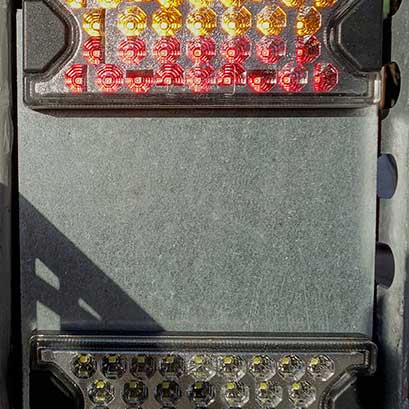

LED Dual Voltage (12v & 24v) Lighting System

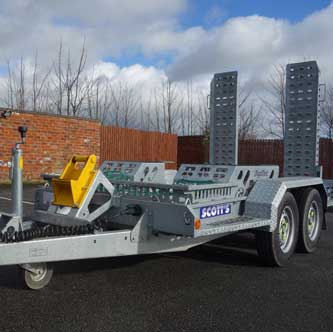

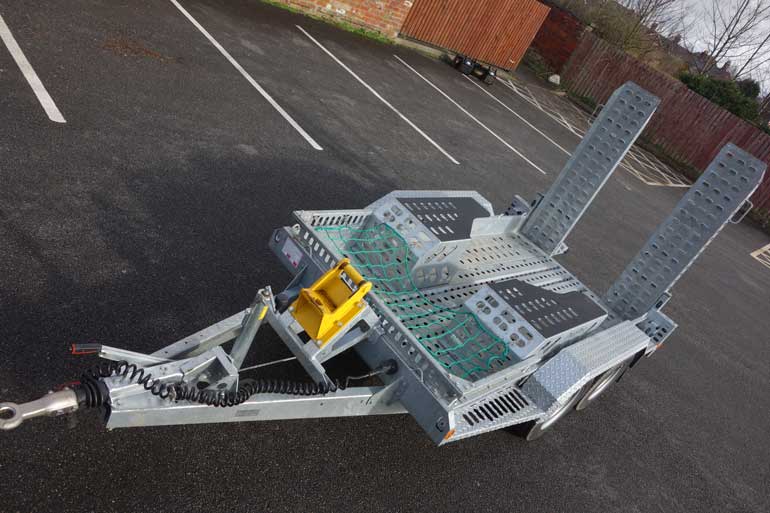

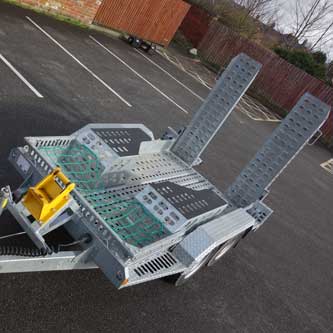

Angled View

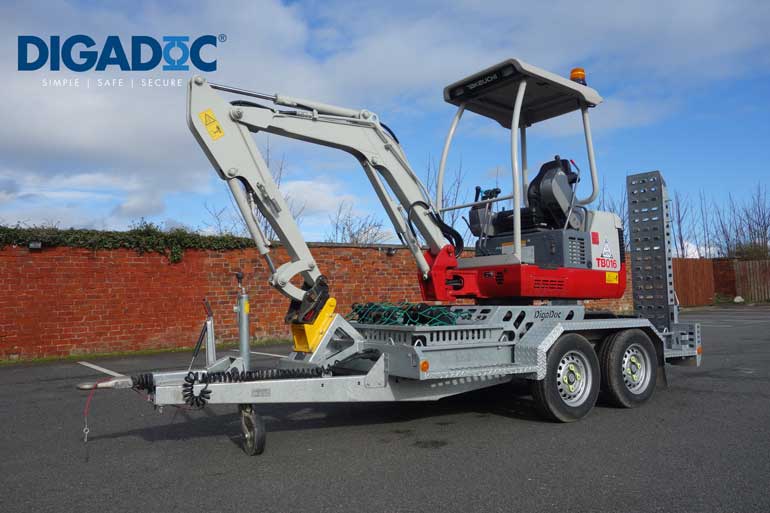

3/4 View

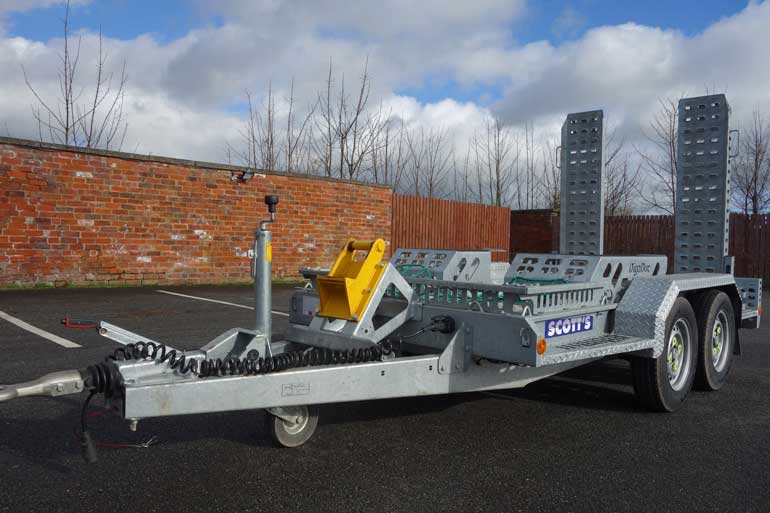

3/4 View 2

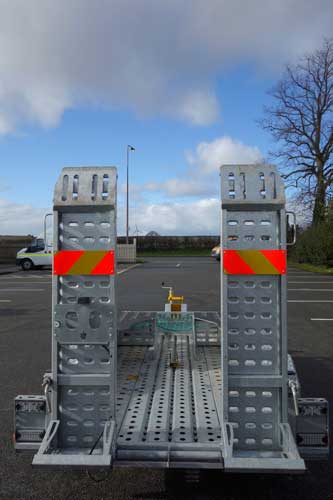

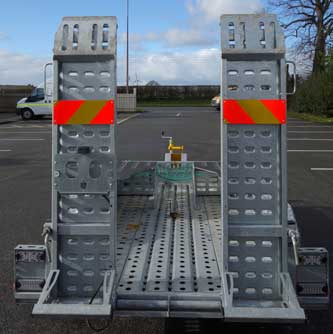

Rear View

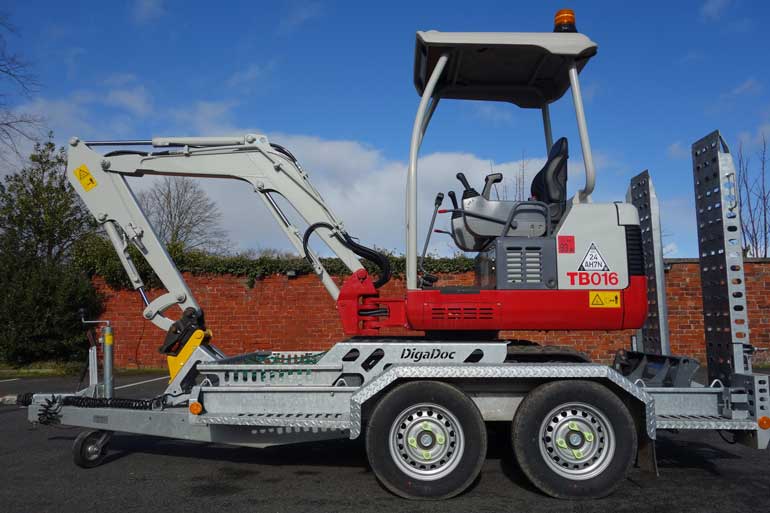

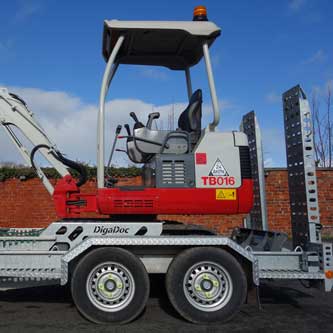

Side View

Side Casing

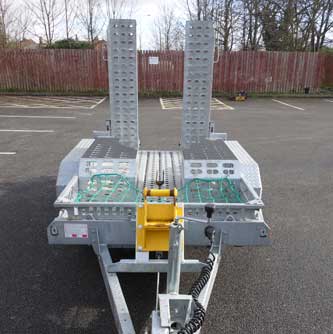

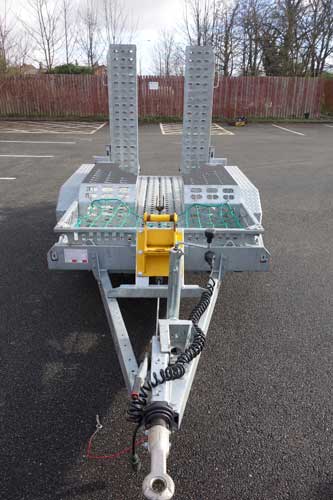

Front View
